✨ Root Object Variable (Blueprint & C++)

Short Description

The UGorgeousRootObjectVariable class serves as the central registry for all object variables within the Gorgeous Things ecosystem. It implements a singleton pattern for global access and provides comprehensive management of object variables.

Long Description

UGorgeousRootObjectVariable is the foundation of the object variable system in Gorgeous Things. As a singleton, it provides a centralized point of access for all object variables, managing their registration, hierarchy, and lifecycle. This class extends the base UGorgeousObjectVariable class with additional functionality specific to the root registry.

🚀 Features

GetRootObjectVariable

📝 Function Details📚 Usage Examples

Gets the singleton instance of the root object variable, providing global access to the central registry.

Output

Parameter	Type	Description
ReturnType	UGorgeousRootObjectVariable*	The singleton instance of the root object variable.

Important

This function is the primary way to access the root object variable. It ensures that only one instance exists throughout the application lifecycle.

BlueprintC++

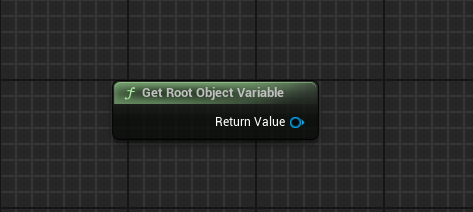

Get the singleton instance of the Root Object Variable.

UGorgeousRootObjectVariable* RootObjectVariable = UGorgeousRootObjectVariable::GetRootObjectVariable();

// Now you can use the root object variable to create new object variables
FGuid MyNewObjectVariableIdentifier;
UGorgeousObjectVariable* MyNewObjectVariable = RootObjectVariable->NewObjectVariable(UString_SOV::StaticClass(), MyNewObjectVariableIdentifier, nullptr, false);

GetVariableHierarchyRegistry

📝 Function Details📚 Usage Examples

Retrieves the complete hierarchy registry of all object variables, including those nested within other object variables.

Output

Parameter	Type	Description
ReturnType	TArray<UGorgeousObjectVariable*>	An array containing all registered object variables in the hierarchy.

Important

This function returns a flat array of all object variables in the hierarchy, regardless of their nesting level. This is useful for operations that need to process all object variables regardless of their position in the hierarchy.

BlueprintC++

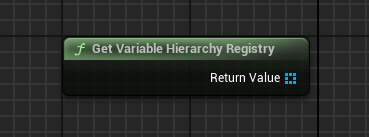

Get all object variables in the hierarchy as a flat array.

TArray<UGorgeousObjectVariable*> AllVariables = UGorgeousRootObjectVariable::GetVariableHierarchyRegistry();

// Process all variables in the hierarchy
for (UGorgeousObjectVariable* Variable : AllVariables)
{
    // Do something with each variable
}

GetRootVariableRegistry

📝 Function Details📚 Usage Examples

Retrieves the registry of root-level object variables, which are direct children of the root object variable.

Output

Parameter	Type	Description
ReturnType	TArray<UGorgeousObjectVariable*>	An array containing all root-level object variables.

Important

This function returns only the top-level object variables that are direct children of the root object variable. It does not include nested variables.

BlueprintC++

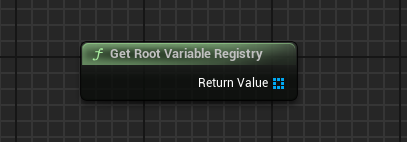

Get only the root-level object variables.

TArray<UGorgeousObjectVariable*> RootVariables = UGorgeousRootObjectVariable::GetRootVariableRegistry();

// Process only root-level variables
for (UGorgeousObjectVariable* Variable : RootVariables)
{
    // Do something with each root variable
}

RemoveVariableFromRegistry

📝 Function Details📚 Usage Examples

Removes a variable from the registry, effectively unregistering it from the system.

Input

Parameter	Type	Description
VariableToRemove	UGorgeousObjectVariable*	The object variable to remove from the registry.

Important

This function exeutes on both the root registry and the registries of all other variables to properly remove the requested object variable from the whole hierarchy.

BlueprintC++

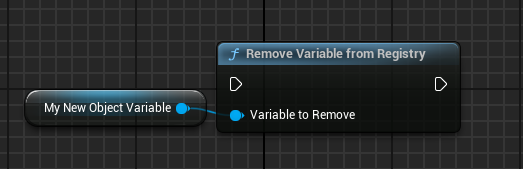

Remove an object variable from the registry.

UGorgeousObjectVariable* VariableToRemove = ...;

UGorgeousRootObjectVariable::RemoveVariableFromRegistry(VariableToRemove);

IsVariableRegistered

📝 Function Details📚 Usage Examples

Checks if a given object variable is already registered with the registry.

InputOutput

Parameter	Type	Description
Variable	UGorgeousObjectVariable*	The variable to check for existence in the registry.

Parameter	Type	Description
ReturnType	bool	True if the variable is registered, false otherwise.

Important

This function checks both the root registry and the registries of all other variables to determine if the variable is registered anywhere in the hierarchy.

BlueprintC++

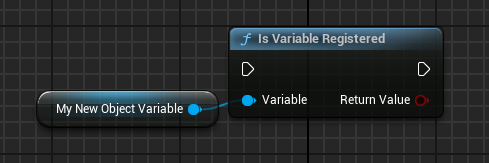

Check if an object variable is already registered.

UGorgeousObjectVariable* MyVariable = ...;

bool bIsRegistered = UGorgeousRootObjectVariable::IsVariableRegistered(MyVariable);
if (bIsRegistered)
{
    // Variable is already registered
}

CleanupRegistry

📝 Function Details📚 Usage Examples

Cleans up the registry, optionally performing a full cleanup.

Input

Parameter	Type	Description
bFullCleanup	bool	Whether to perform a full cleanup. Defaults to false.

Abstract

In most cases you won't even need to call this function, due to that this already happens automatically on every level switch and exit of the game/editor play session.

BlueprintC++

Clean up the object variable registry.

// Perform a standard cleanup
UGorgeousRootObjectVariable::CleanupRegistry();

// Or perform a full cleanup
UGorgeousRootObjectVariable::CleanupRegistry(true);

SetUniversalVariable

📝 Function Details📚 Usage Examples

Sets the value of a property with any type for an object variable identified by its unique identifier.

Warning

This function is not intended to be called from C++, it should only be used in Blueprint. For a C++ version of this, check out the equivalent SetDynamicProperty function in UGorgeousObjectVariable.

Input

Parameter	Type	Description
Identifier	FGuid	The unique identifier of the object variable.
OptionalPropertyName	FName	The name of the property to set. Defaults to "Value" if not specified.
Value	int32	The value to set. The actual type depends on the property.

Important

This function uses a custom thunk to handle different property types. The actual type of the Value parameter will be determined by the property being set.

Blueprint

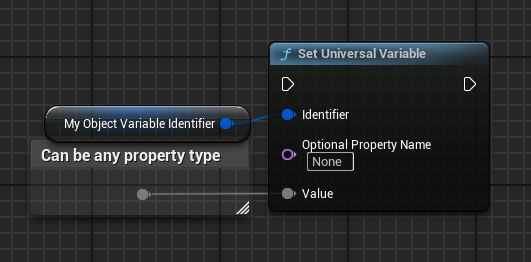

Set a property value for an object variable by its identifier.

GetUniversalVariable

📝 Function Details📚 Usage Examples

Gets the value of a property with any type from an object variable identified by its unique identifier.

Warning

This function is not intended to be called from C++, it should only be used in Blueprint. For a C++ version of this, check out the equivalent GetDynamicProperty function in UGorgeousObjectVariable.

InputOutput

Parameter	Type	Description
Identifier	FGuid	The unique identifier of the object variable.
OptionalPropertyName	FName	The name of the property to get. Defaults to "Value" if not specified.

Parameter	Type	Description
OutValue	int32	The output value. The actual type depends on the property.

Important

This function uses a custom thunk to handle different property types. The actual type of the OutValue parameter will be determined by the property being retrieved.

Blueprint

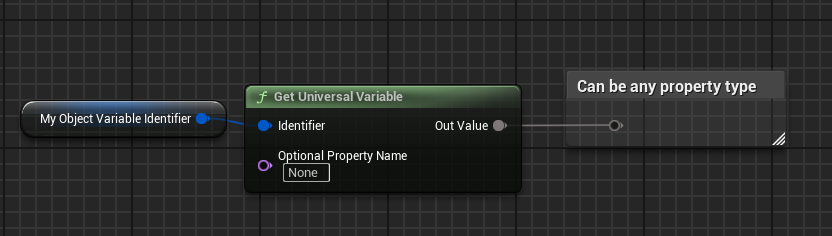

Get a property value from an object variable by its identifier.

RegisterWithRegistry

📝 Function Details📚 Usage Examples

Registers a new object variable with the registry. This is an override of the base class method.

Input

Parameter	Type	Description
NewObjectVariable	UGorgeousObjectVariable*	The object variable to register.

Usage

This function is typically called internally by the system when a new UGorgeousObjectVariable is created. However, you might need to call it manually in specific scenarios, such as when re-registering a variable after a specific event.

BlueprintC++

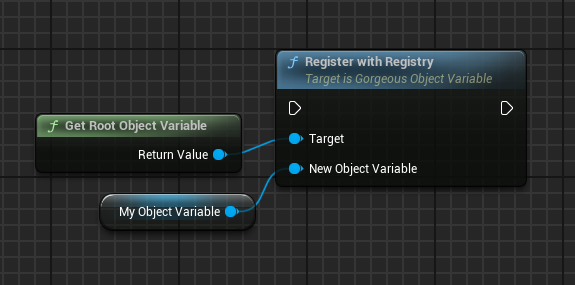

Register a new object variable with the root registry.

UGorgeousObjectVariable* MyNewVariable = ...;

UGorgeousRootObjectVariable::GetRootObjectVariable()->RegisterWithRegistry(MyNewVariable);

---

Variable Properties

Property	Type	Description
RootVariableRegistry	static TArray<TObjectPtr<UGorgeousObjectVariable>>	The registry of root-level object variables.
SingletonRootInstance	static TObjectPtr<UGorgeousRootObjectVariable>	The singleton instance of the root object variable.
